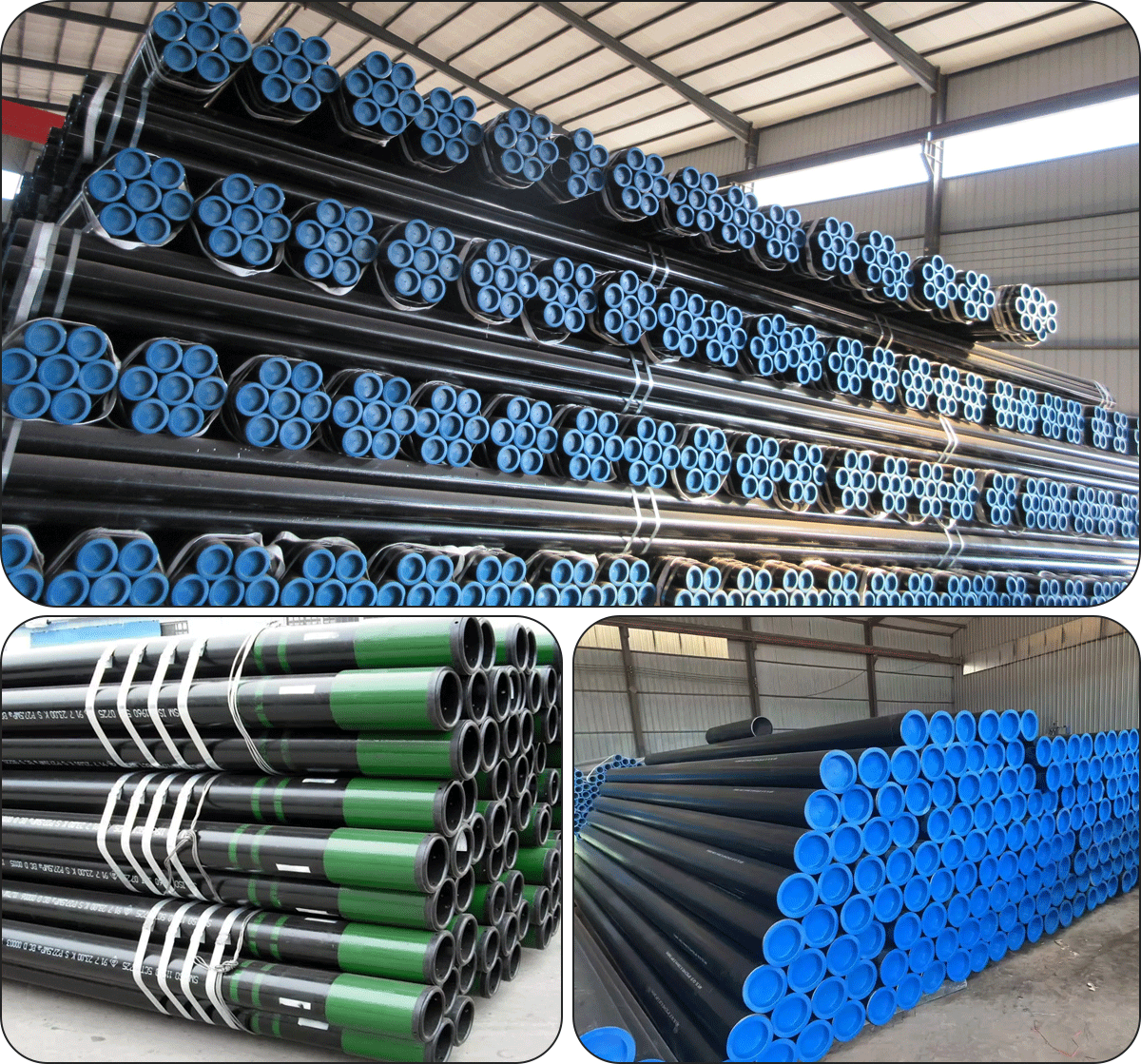

API 5L Pipe

Product Introduction

API 5L Pipes are a type of steel pipes that adhere to the specifications outlined by the American Petroleum Institute (API). These pipes are designed for use in conveying gas, water, and oil in both the oil and natural gas industries. The "5L" in API 5L stands for "Line Pipe," indicating its primary application for transporting fluids and gases from one point to another.

Visual Inspection:Surface Inspection,Defect Detection ,Cosmetic Inspection.
Dimensional Inspection :Tolerance Verification,Calibration Check.
Chemical Analysis :Elemental Analysis ,Spectroscopic Analysis,Material Certification.
Mechanical Testing :Tensile Test,Yield Test,Hardness Test,Impact Test
NDT: UT,RT,MT,PT,ET
Package Inspection: Visual Inspection , Material Testing , Integrity Testing, Mark Inspection.



PRODUCT DETAILS

Tisco Hongcheng Tech Co.，Ltd



API 5L Pipe Grades	API 5L Grade B PSL1, PSL 2 / API 5L X42 PSL1, PSL 2 / API 5L X46 PSL1, PSL 2 / API 5L X52 PSL1, PSL 2 / API 5L X56 PSL1, PSL 2 / API 5L X60 PSL1, PSL 2 / API 5L X65 PSL1, PSL 2 / X70 PSL1, PSL 2 / API 5L X70 PSL1 / PSL2 / API 5CT / API 5L X80 PSL1, PSL 2 / L245 PSL1, PSL 2, L290 PSL1, PSL 2, L320 PSL1, PSL 2, L360 PSL1, PSL 2, L390 PSL1, PSL 2, L415 PSL1, PSL 2, L450 PSL1, PSL 2, L485 PSL1, PSL 2
API 5L Pipe Type	Seamless/welded
API 5L Pipe Outer Diameter Size	3/8" NB to 30" NB (Nominal Bore Size)
API 5L Pipe Wall Thickness	Schedule 20 to Schedule XXS (Heavier On Request) Up to 250 mm Thickness
API 5L Pipe Length	5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size.
API 5L Pipe Ends	Plain Ends / Beveled Ends / Coupling
API 5L Pipe Delivery Conditions	As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T
API 5L Pipe Coating	Epoxy Coating / Colour Paint Coating / 3LPE Coating.
API 5L Pipe Other Testing	NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, Etc.
API 5L Pipe Dimension	All Pipes Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.
API 5L Pipe Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
API 5L Pipe Packaging	Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
API 5L Pipe Shipment & Transportation	By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet

API 5L Line Pipe PSL1 Chemical Requirement Chemical Composition for PSL 1 pipe with t ≤ 0.984”

Steel Grade	Mass fraction, % based on heat and product analyses a,g
	C	Mn	P	S	V	Nb	Ti
	max b	max b	max	max	max	max	max
Seamless Pipe
A	0.22	0.9	0.3	0.3	–	–	–
B	0.28	1.2	0.3	0.3	c,	c,	D
X42	0.28	1.3	0.3	0.3
X46	0.28	1.4	0.3	0.3
X52	0.28	1.4	0.3	0.3
X56	0.28	1.4	0.3	0.3
X60	0.28 e	1.40 e	0.3	0.3	f	f	f
X65	0.28 e	1.40 e	0.3	0.3	f	f	f
X70	0.28 e	1.40 e	0.3	0.3	f	f	f
Welded Pipe
A	0.22	0.9	0.3	0.3	–	–	–
B	0.26	1.2	0.3	0.3	c,	c
X42	0.26	1.3	0.3	0.3
X46	0.26	1.4	0.3	0.3
X52	0.26	1.4	0.3	0.3
X56	0.26	1.4	0.3	0.3
X60	0.26 e	1.40 e	0.3	0.3	f	f	f
X65	0.26 e	1.45 e	0.3	0.3	f	f	f
X70	0.26e	1.65 e	0.3	0.3	f	f	f
a. Cu ≤ = 0.50% Ni; ≤ 0.50%; Cr ≤ 0.50%; and Mo ≤ 0.15%,
b. for each reduction of 0.01% below the specified max. concentration for carbon, and increase of 0.05% above the specified max. concentration for Mn is permissible, up to a max. of 1.65% for grades ≥ B, but ≤ = X52; up to a max. of 1.75% for grades X52, but X70; and up to a maximum of 2.00% for X70.,
c. Unless otherwise agreed NB + V ≤ 0.06%,
d. Nb + V + TI ≤ 0.15%,
e. Unless otherwise agreed.,
f. Unless otherwise agreed, NB + V = Ti ≤ 0.15%,
g. No deliberate addition of B is permitted and the residual B ≤ 0.001%

Chemical Composition for PSL 2 pipe with t ≤ 0.984”

Steel Grade	Mass fraction, % based on heat and Steel Products analyses													Carbon Equiv a
	C	Si		Mn		P		S		V	Nb	Ti	Other	CE IIW	CE Pcm
	max b	max		max b		max		max		max	max	max		max	max
Seamless and Welded Pipe
BR	0.24	0.4		1.2		0.025		0.015		c	c	0.04	e,l	0.043	0.25
X42R	0.24	0.4		1.2		0.025		0.015		0.06	0.05	0.04	e,l	0.043	0.25
BN	0.24	0.4		1.2		0.025		0.015		c	c	0.04	e,l	0.043	0.25
X42N	0.24	0.4		1.2		0.025		0.015		0.06	0.05	0.04	e,l	0.043	0.25
X46N	0.24	0.4		1.4		0.025		0.015		0.07	0.05	0.04	d,e,l	0.043	0.25
X52N	0.24	0.45		1.4		0.025		0.015		0.1	0.05	0.04	d,e,l	0.043	0.25
X56N	0.24	0.45		1.4		0.025		0.015		0.10f	0.05	0.04	d,e,l	0.043	0.25
X60N	0.24f	0.45f		1.40f		0.025		0.015		0.10f	0.05f	0.04f	g,h,l	As agree
BQ	0.18	0.45		1.4		0.025		0.015		0.05	0.05	0.04	e,l	0.043	0.25
X42Q	0.18	0.45		1.4		0.025		0.015		0.05	0.05	0.04	e,l	0.043	0.25
X46Q	0.18	0.45		1.4		0.025		0.015		0.05	0.05	0.04	e,l	0.043	0.25
X52Q	0.18	0.45		1.5		0.025		0.015		0.05	0.05	0.04	e,l	0.043	0.25
X56Q	0.18	0.45f		1.5		0.025		0.015		0.07	0.05	0.04	e,l	0.043	0.25
X60Q	0.18f	0.45f		1.70f		0.025		0.015		g	g	g	h,l	0.043	0.25
X65Q	0.18f	0.45f		1.70f		0.025		0.015		g	g	g	h,l	0.043	0.25
X70Q	0.18f	0.45f		1.80f		0.025		0.015		g	g	g	h,l	0.043	0.25
X80Q	0.18f	0.45f		1.90f		0.025		0.015		g	g	g	i,j	As agree
X90Q	0.16f	0.45f		1.9		0.02		0.01		g	g	g	j,k	As agree
X100Q	0.16f	0.45f		1.9		0.02		0.01		g	g	g	j,k	As agree
Welded Pipe
BM		0.22	0.45		1.2		0.025		0.015	0.05	0.05	0.04	e,l	0.043	0.25
X42M		0.22	0.45		1.3		0.025		0.015	0.05	0.05	0.04	e,l	0.043	0.25
X46M		0.22	0.45		1.3		0.025		0.015	0.05	0.05	0.04	e,l	0.043	0.25
X52M		0.22	0.45		1.4		0.025		0.015				e,l	0.043	0.25
X56M		0.22	0.45f		1.4		0.025		0.015				e,l	0.043	0.25
X60M		0.12f	0.45f		1.60f		0.025		0.015	g	g	g	h,l	0.043	0.25
X65M		0.12f	0.45f		1.60f		0.025		0.015	g	g	g	h,l	0.043	0.25
X70M		0.12f	0.45f		1.70f		0.025		0.015	g	g	g	h,l	0.043	0.25
X80M		0.12f	0.45f		1.85f		0.025		0.015	g	g	g	i,j	.043f	0.25
X90M		0.1	0.55f		2.10f		0.02		0.01	g	g	g	i,j	鈥?/td>	0.25
X100M		0.1	0.55f		2.10f		0.02		0.01	g	g	g	i,j	鈥?/td>	0.25
a. SMLS t 0.787”, CE limits shall be as agreed. The CEIIW limits applied fi C 0.12% and the CEPcm limits apply if C ≤ 0.12%, b. for each reduction of 0.01% below the specified max. concentration for carbon, and increase of 0.05% above the specified max. concentration for Mn is permissible, up to a max. of 1.65% for grades ≥ B, but ≤ = X52; up to a max. of 1.75% for grades X52, but X70; and up to a maximum of 2.00% for X70., c. Unless otherwise agreed Nb = V ≤ 0.06%, d. Nb = V = Ti ≤ 0.15%, e. Unless otherwise agreed, Cu ≤ 0.50%; Ni ≤ 0.30% Cr ≤ 0.30% and Mo ≤ 0.15%, f. Unless otherwise agreed, g. Unless otherwise agreed, Nb + V + Ti ≤ 0.15%, h. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 0.50% Cr ≤ 0.50% and MO ≤ 0.50%, i. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 1.00% Cr ≤ 0.50% and MO ≤ 0.50%, j. B ≤ 0.004%, k. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 1.00% Cr ≤ 0.55% and MO ≤ 0.80%, l. for all PSL 2 pipe grades except those grades with footnotes j noted, the following applies. Unless otherwise agreed no intentional addition of B is permitted and residual B ≤ 0.001% .

API 5L MECHANICAL PROPERTIES

Pipe Grade	Tensile Properties – Pipe Body of SMLS and Welded Pipes PSL 1			Seam of Welded Pipe
	Yield Strength a	Tensile Strength a	Elongation	Tensile Strength b
	Rt0,5 PSI Min	Rm PSI Min	(in 2in Af % min)	Rm PSI Min
A	30,500	48,600	c	48,600
B	35,500	60,200	c	60,200
X42	42,100	60,200	c	60,200
X46	46,400	63,100	c	63,100
X52	52,200	66,700	c	66,700
X56	56,600	71,100	c	71,100
X60	60,200	75,400	c	75,400
X65	65,300	77,500	c	77,500
X70	70,300	82,700	c	82,700
a. for intermediate grade, the difference between the specified minimum tensile strength and the specified minimum yield for the pipe body shall be as given for the next High Temperature grade.
b. for the intermediate grades, the specified minimum tensile strength for the weld seam shall be the same as determined for the body using foot note a.
c. The specified minimum elongation, Af, expressed in percent and rounded to the nearest percent, shall be determined using the following equation:
Where C is 1 940 for calculation using Si units and 625 000 for calculation using USC units
Axc is the applicable tensile test piece cross-sectional area, expressed in square millimeters (square inches) , as follows
– for circular cross-section test pieces, 130mm2 (0.20 in2) for 12.7 mm (0.500 in) and 8.9 mm (.350 in) diameter test pieces; and 65 mm2 (0.10 in2) for 6.4 mm (0.250in) diameter test pieces.
– for full-section test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified outside diameter and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
– for strip test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified width of the test piece and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
U is the specified minimum tensile strength, expressed in megapascals (pounds per square inch)

Pipe Grade	Tensile Properties – Pipe Body of SMLS and Welded Pipes PSL 2						Seam of Welded Pipe
	Yield Strength a		Tensile Strength a		Ratio a,c	Elongation	Tensile Strength
	Rt0,5 PSI Min		Rm PSI Min		R10,5IRm	(in 2in)	Rm (psi)
						Af %
	Minimum	Maximum	Minimum	Maximum	Maximum	Minimum	Minimum
BR, BN,BQ,BM	35,500	65,300	60,200	95,000	0.93	f	60,200
X42,X42R,X2Q,X42M	42,100	71,800	60,200	95,000	0.93	f	60,200
X46N,X46Q,X46M	46,400	76,100	63,100	95,000	0.93	f	63,100
X52N,X52Q,X52M	52,200	76,900	66,700	110,200	0.93	f	66,700
X56N,X56Q,X56M	56,600	79,000	71,100	110,200	0.93	f	71,100
X60N,X60Q,S60M	60,200	81,900	75,400	110,200	0.93	f	75,400
X65Q,X65M	65,300	87,000	77,600	110,200	0.93	f	76,600
X70Q,X65M	70,300	92,100	82,700	110,200	0.93	f	82,700
X80Q,X80M	80,.500	102,300	90,600	119,700	0.93	f	90,600
a. for intermediate grade, refer to the full API5L specification.
b. for grades X90 refer to the full API5L specification.
c. This limit applies for pies with D 12.750 in
d. for intermediate grades, the specified minimum tensile strength for the weld seam shall be the same value as was determined for the pipe body using foot a.
e. for pipe requiring longitudinal testing, the maximum yield strength shall be ≤ 71,800 psi
f. The specified minimum elongation, Af, expressed in percent and rounded to the nearest percent, shall be determined using the following equation:
Where C is 1 940 for calculation using Si units and 625 000 for calculation using USC units
Axc is the applicable tensile test piece cross-sectional area, expressed in square millimeters (square inches) , as follows
– for circular cross-section test pieces, 130mm2 (0.20 in2) for 12.7 mm (0.500 in) and 8.9 mm (.350 in) diameter test pieces; and 65 mm2 (0.10 in2) for 6.4 mm (0.250in) diameter test pieces.
– For full-section test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified outside diameter and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
– For strip test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified width of the test piece and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
U is the specified minimum tensile strength, expressed in megapascals (pounds per square inch
g. Lower values fo R10,5IRm may be specified by agreement
h. for grades x90 refer to the full API5L specification.

Delivery condition

PSL	Delivery Condition	Pipe grade
PSL1	As-rolled, normalized, normalizing formed	A
	As-rolled, normalizing rolled, thermomechanical rolled, thermo-mechanical formed, normalizing formed, normalized, normalized and tempered or if agreed Q&T SMLS only	B
	As-rolled, normalizing rolled, thermomechanical rolled, thermo-mechanical formed, normalizing formed, normalized, normalized and tempered	X42, X46, X52, X56, X60, X65, X70
PSL 2	As-rolled	BR, X42R
	Normalizing rolled, normalizing formed, normalized or normalized and tempered	BN, X42N, X46N, X52N, X56N, X60N
	Quenched and tempered	BQ, X42Q, X46Q, X56Q, X60Q, X65Q, X70Q, X80Q, X90Q, X100Q
	Thermomechanical rolled or thermomechanical formed	BM, X42M, X46M, X56M, X60M, X65M, X70M, X80M
	Thermomechanical rolled	X90M, X100M, X120M
	The suffice (R, N, Q or M) for PSL2 grades, belongs to the steel grade

Hydrostatic test

Pipe to withstand a hydrostatic test without leakage through the weld seam or the pipe body. Jointers need not be hydrostatic tested provide the pipe sections used were successfully tested.

Bend test

No cracks shall occur in any portion of the test piece and no opening of the weld shall occur.

Flattening test

Acceptance criteria for flattening test shall be:

EW Pipes D< 12.750 in:

X60 with T 500in. There shall be no opening of the weld before the distance between the plates is less than 66% of the original outside diameter. for all grades and wall, 50%.

For pipe with a D/t 10, there shall be no opening of the weld before the distance between the plates is less than 30% of the original outside diameter.

For other sizes refer to the full API 5L specification.


