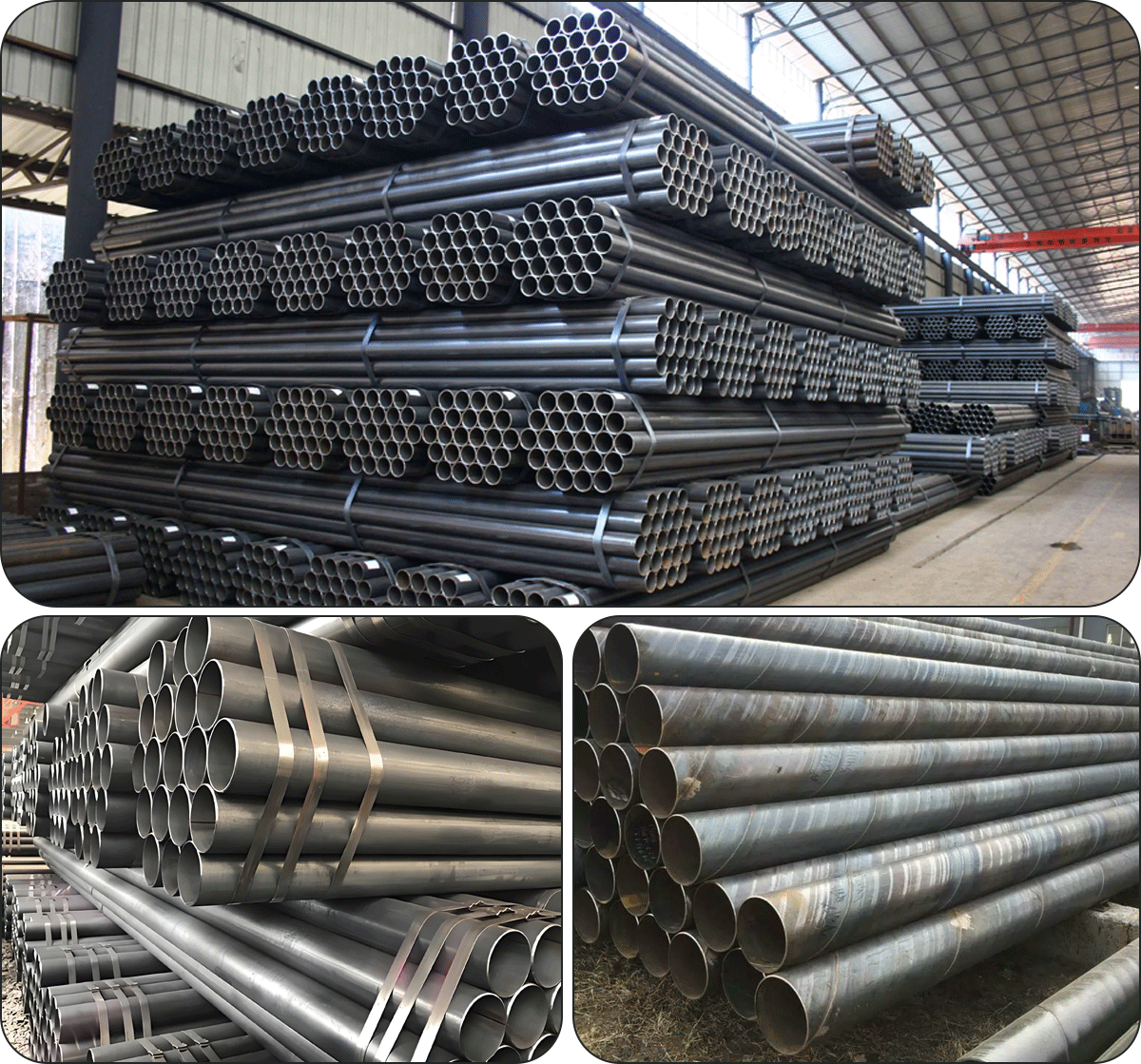

Spiral welded pipe

Product Introduction

Spiral welded pipe: It is made by rolling low-carbon carbon structural steel or low alloy structural steel strips at a certain spiral Angle (called the forming Angle) into a tube blank, and then welding the pipe seams together. It can produce large-diameter steel pipes with relatively narrow steel strips. Its specifications are indicated by outer diameter * wall thickness. Welded pipes should ensure that the hydrostatic test, tensile strength of the weld seam and cold bending performance comply with the regulations.

Visual Inspection:Surface Inspection,Defect Detection ,Cosmetic Inspection.
Dimensional Inspection :Tolerance Verification,Calibration Check.
Chemical Analysis :Elemental Analysis ,Spectroscopic Analysis,Material Certification.
Mechanical Testing :Tensile Test,Yield Test,Hardness Test,Impact Test
NDT: UT,RT,MT,PT,ET
Package Inspection: Visual Inspection , Material Testing , Integrity Testing, Mark Inspection.



PRODUCT DETAILS

Tisco Hongcheng Tech Co.，Ltd



Material:	A36、A53、A106、A192、ST52、Q355、A210、T12、T11、P5、P9、P91、T22、A333、4140、5135 etc.
Grade(EN):	1.7220、1.7336、1.2601、1.7380、1.7335、1.0033、1.0116 etc.
	Outer Diameter	Seamless:17-914mm 3/8"-36"
Size	Wall Thickness	2-60mm SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80
	Length	1-12m as customer requirement
Ends	Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded andcoupling,etc.
Surface Treatment	Bare,Painting black,varnished,galvanized,anti-corrosion 3PE PP/EP/FBE coating
Technical Methods	Hot-rolled/Cold-drawn/Hot-expanded
Testing Methods	Pressure test,Flaw detection,Eddy current testing, Hydrostatic testing or Ultrasonicexamination and also with chemical and physical property inspection
Third Party Inspection	SGS BV MTC
Trade Terms	FOB CIF CFR
Payment Terms	FOB 30%T/T,70% before shipment
	CIF 30% pre-payment and the balance to be paid upon B/L (copy)
	or Irrevocable 100% L/C at sight

Supplementary Requirements
S1. Tension and Bend Tests
S2. Charpy V-Notch Test (As per A20/20M)

Acceptance Criteria Charpy V-Notch			Specification and Grade	Test Temperature, °C for plate Thickness (Unless Otherwise Agreed Upon)
Energy Absorption
ClassA	Min. Avg for 3 SpecimenB	Min for 1 SpecimenB		25 mm and under	Over 25 mm to 50 mm, incl	Over 50 mm to 75 mm, incl	Over 75 mm to 125 mm, incl
	J	J		25 mm and under	Over 25 mm to 50 mm, incl	Over 50 mm to 75 mm, incl	Over 75 mm to 125 mm, incl
I	14	10	A285 Grade A	4	16	--	--
			A285 Grade B	10	21	--	--
			A285 Grade C	16	27	--	--
II	18	14	A455	-4	--	--	--
III	18	14	A203 Grade A	-68	-68	-60	--
			A203 Grade D	-101	-101	-87	--
			A516 Grade 55	-51	-51	-46	-46
			A516 Grade 60	-51	-46	-46	-46
			A516 Grade 65	-51	-56	-40	-32
IV	20	16	A203 Grade B	-68	-68	-60	--
			A203 Grade E	-101	-101	-87	--
			A203 Grade F (100 mm max)	--	--	-107	-107
			A516 Grade 70	-46	-40	-35	-29
			A537 Class 1 (64 mm max)	-62	-60	-60	--
			A537 Class 2 (Over 64-100 mm)
V	27	20	A203 Grade F	-107	-107	--	--
Lateral Expansion mm, Minimum Each Specimen Transverse Test
VI	0.38		A353	-196	-196	--	--
			A553 Type I	-196	-196	--	--
			A553 Type II	-170	-170	--	--
			A517 all (64 mm max thickness)	C	C	--	--


