SPCC steel is commercial-grade cold-rolled steel as defined in the Japanese manufacturing standard JIS G 3141. It is equivalent to the Q195 and Q215A grades in China. SPHC steel is a kind of hot-rolled steel of commercial quality. The following are its mechanical properties.

The tensile strength should be at least 270 N/mm ² (megapascals); The yield strength is ≤240 N/mm ² (megapascals).

COMMON STEEL GRADES

DC01 (Tensile strength 270-410 MPa) - This grade can be used for simple forming processes, such as bending, embossing, flanging and stretching.

DC02/DC03 - These grades are suitable for forming requirements such as deep drawing and difficult profiles.

DC04 - This quality can meet the requirements of high deformation.

DC05/06/07 - These deep drawing quality grades are suitable for higher forming and deformation requirements. The following are their mechanical properties.

SPCC, SPCD, SPCE Materials

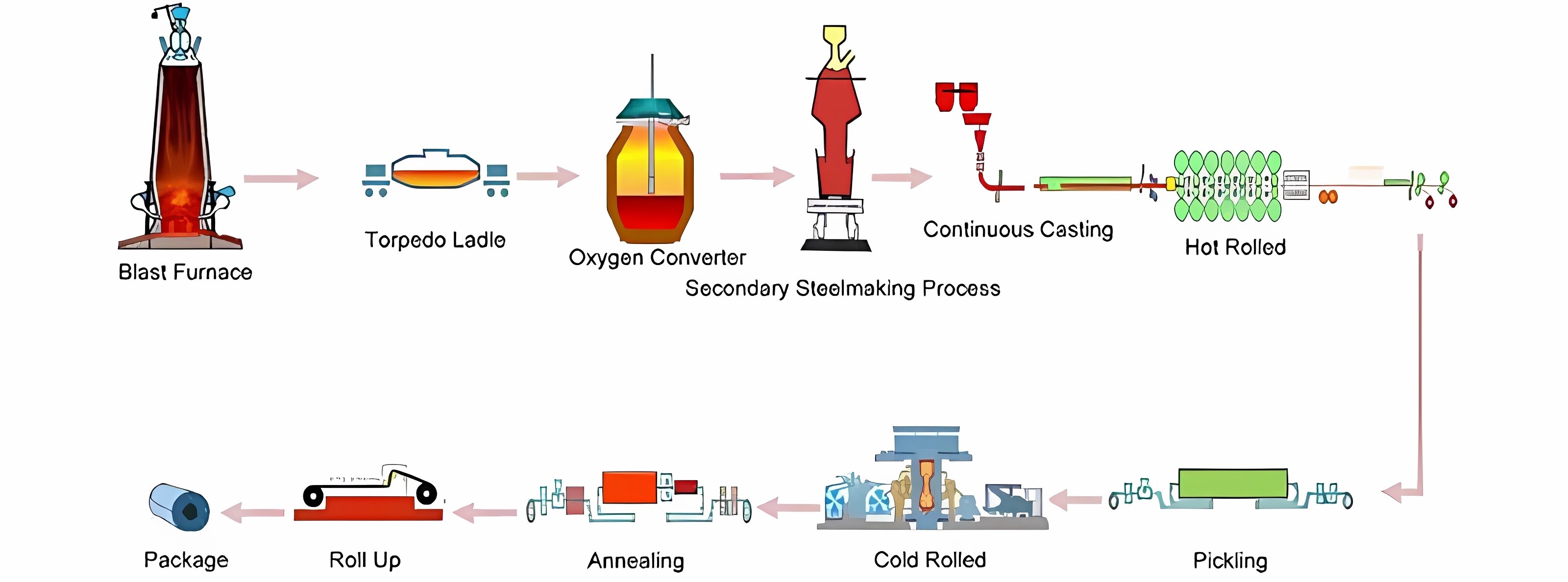

Manufacturing process of cold-rolled steel coils

The production process of cold-rolled coil varies slightly depending on the raw materials and the types and specifications of the products. The following is the manufacturing process of cold-rolled steel.

Raw materials (hot-rolled steel)- Pickling - cold rolling - degreasing - Annealing - coiling - packaging

1. Pickling. Hot-rolled coils pass through the pickling line, and the surface oxide scale is removed by using hydrochloric acid solution. Through the pickling process, fewer surface defects will be left.

2. Cold rolling. The pickled coil is rolled into the specified thickness in the cold rolling mill.

3. Annealing. After the lubricating oil and contaminants are removed through electrolytic cleaning, the coil will undergo a continuous annealing process. Its purpose is to manufacture steel with high tensile strength.

4. Roll them up and then package them for sale.

The characteristics of cold-rolled coil

1. High strength: 20% stronger than hot-rolled steel

2. High surface quality - smooth and easy to paint

3. Strict tolerances

4. Good formability

5. Poor toughness and weldability

The uses of cold-rolled steel coils

Cold-rolled steel coils are typically used in applications that require precise tolerances, high strength and high surface finish quality. It is also the base metal galvanized steel coil. The following are its applications:

1. Automotive parts, such as corrosion-resistant automotive parts, etc.

2. Light industry, such as home appliance shells, civil chimneys, kitchenware, etc.

3. Construction uses, such as roof panels, roof grilles, etc.

4. The base material is color-coated steel, galvanized steel or aluminized zinc steel.
