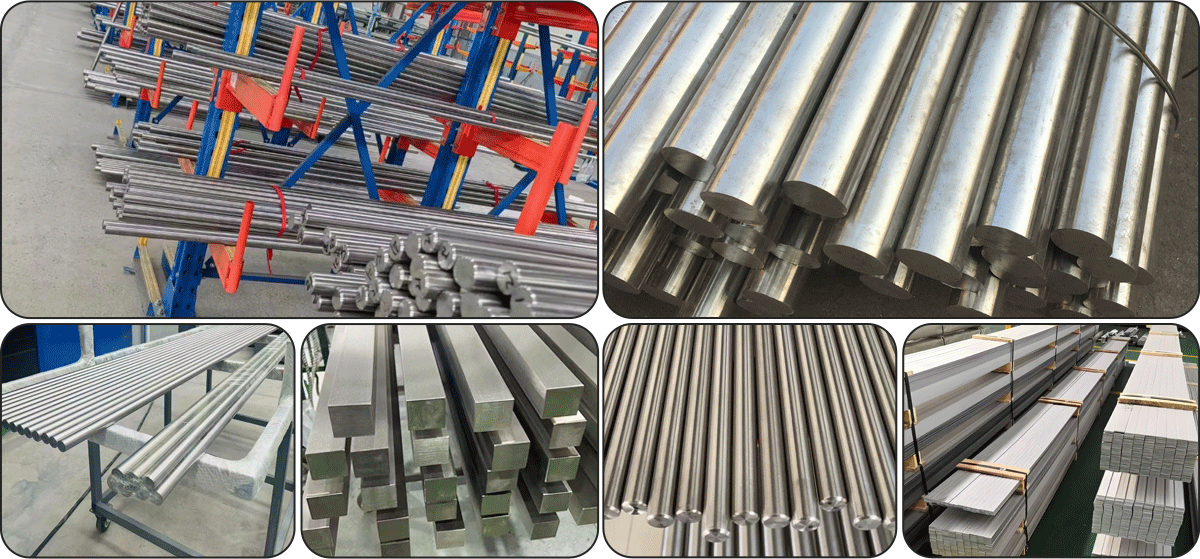

201 Stainless Steel Bar

Product Introduction

201 stainless steel is composed primarily of iron with between 16 and 18% chromium and up to 0.15% carbon. It also contains small amounts of manganese, nickel, silicon, nitrogen, and copper. It has higher formability than the 300 series grades. In addition, it can be hardened by cold working processes but not heat-treated like 304 or 316 grades. 201 is a high manganese and low nickel stainless steel with low nickel content and poor corrosion resistance. It is widely used in various tabletops, countertops, kitchenware, outdoor decoration engineering, urban decoration industry and low-grade household products. It is also used in medical instruments and automotive parts that require flexibility while maintaining strength under pressure.

Share：

  • Visual Inspection:Surface Inspection,Defect Detection ,Cosmetic Inspection.
  • Dimensional Inspection :Tolerance Verification,Calibration Check.
  • Chemical Analysis :Elemental Analysis ,Spectroscopic Analysis,Material Certification.
  • Mechanical Testing :Tensile Test,Yield Test,Hardness Test,Impact Test
  • NDT: UT,RT,MT,PT,ET
  • Package Inspection: Visual Inspection , Material Testing , Integrity Testing, Mark Inspection.

PRODUCT DETAILS

Tisco Hongcheng Tech Co.，Ltd

Round Bar Manufacturing ProcessHot Rolled / Cold Rolled / Hot Forging / Rolling / Machining
Bar DimensionRound Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 200mm
Hex Bars : 18mm to 57mm (11/16" to 2-3/4")
Square Bars : 18mm to 57mm (11/16" to 2-3/4")
Flat Bars : 1/2"to 10"in thickness range of 2mm to 150mm, Custom Size Stainless Steel Flats available
Round Bar Length2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement
Round Bar Forms and ShapeRound, Square, Hex (A/F), Rectangle, Billet, Ingot, HRAP, Bright, Shaft, Forging Etc.
Round Bar FinishBlack, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Round Bar Dimension StandardASTM A 484 / ISO h11 / ISO K12 Tolerances F8 / h8, h9, h10, h11, h12, k12, k13, A-484, EN-10060, DIN-1013 etc.
Round Bar Heat TreatmentCondition A in which the bars are Annealed
Condition H in which the bars are Hardened and Tempered at a relative Temperature
Condition T in which the bars are Hardened and Tempered at a relatively High Temperature
Condition S in which the bars are Strain Hardened or relatively Light Cold Worked
Condition B in which the bars are Relatively severe Cold worked.
Solution Annealed, Aging and Double Aging
Round Bar Surface FinishCentreless Ground & Belt Polished, up to Ra value = 0.2 um (12 RMS), and Grit Polished of up to 180 to 600
Round Bar ChamferingAvailable in 30°, 45° & 60° through fully automatic, both-end chamfering machine
Round Bar Other TestingNACE MR0175, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, Magnetic Particle Inspection (MPI), 100% tested thru Digital Ultrasonic Flaw Detector, as per ASTM A-388, EN 10308 (class 1to4),API 6A/ISO 10423:2003-PSL3,SEP 1920:1984 ( class A,B,C), MIL STD 2154 etc.
Round Bar Value Added ServicesRolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Polishing

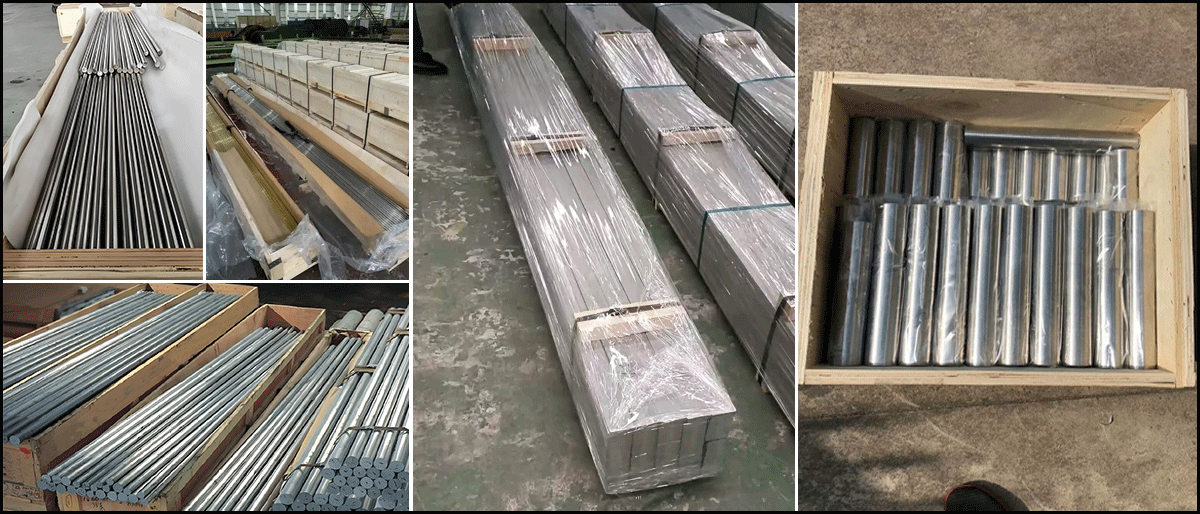

Round Bar PackagingLoose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps
Round Bar Shipment & TransportationBy Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
Round Bar Material Test CertificateManufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC










CSiMnCrNiSP
≤ 0.15≤ 0.755.50~7.5016.00~18.003.50~5.50≤ 0.03≤ 0.06





Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥ 520≥ 275≥55-60≤183HB；≤ 100 HRB





Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(μohm.in)
7.819715.716.227



The Stainless Steel Pipes and Tubes is used in the following applications:


>> Oil and gas equipments

>> Offshore technology

>> Seawater desalination plants

>> Chemical industry

>> Bridges

>> Storage tanks

>> Medical Industry

>> Civil Engineering

>> Pressure vessels, reactor tanks, and heat exchangers

>> Rotors, impellers and shafts

>> Power plants

>> Petrochemical

>> Shipbuilding industry
